Product List

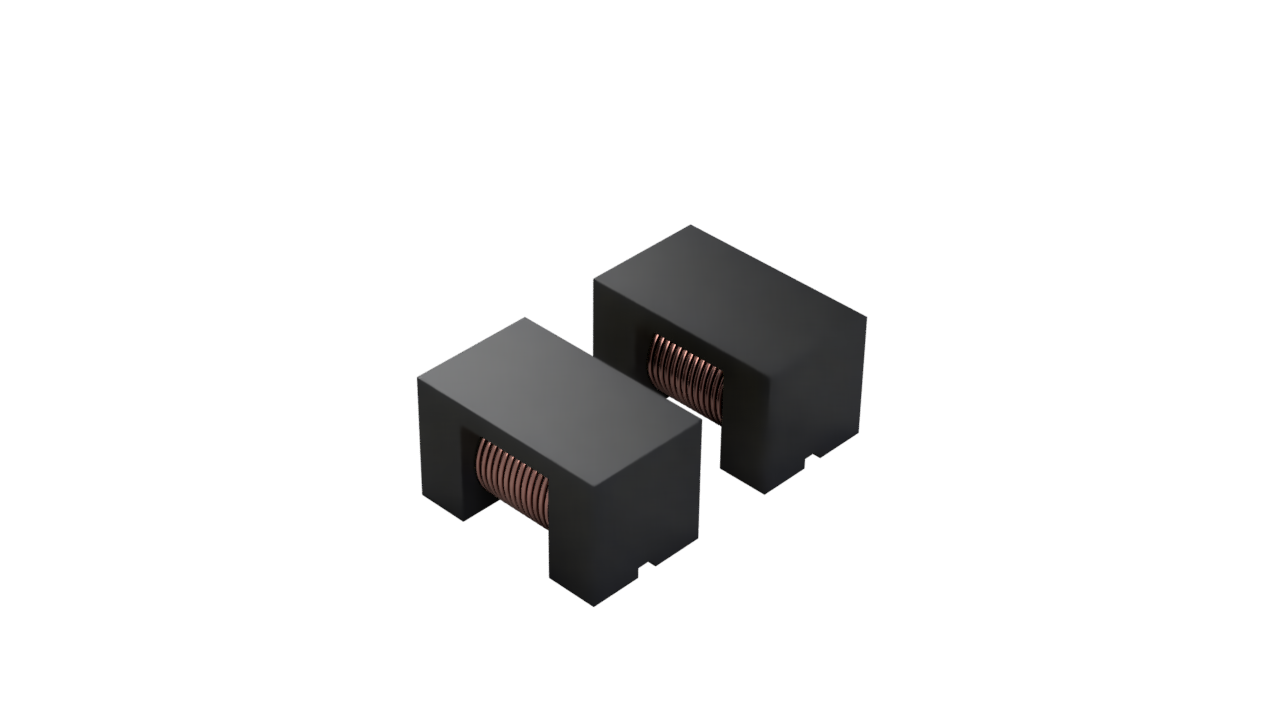

Common Mode Choke Category

For Ethernet application. Support up to 10G Ethernet. Superior common mode rejection.

Common Mode Choke Product Table

Part Number	IDC	DCR	Impedance	Stand Voltage	Data Rate	Package	Download
NLCM0805-G01	100mA	1Ω	800Ω	125V	10/100/1GMbps	0805	Download
NLCM0805-H01	100mA	1Ω	800Ω	125V	10/100/1G/2.5GMbps	0805	Download
NLCM0805-U01	100mA	1Ω	90Ω	125V	10/100/1G/2.5G/10GMbps	0805	Download
