Product List

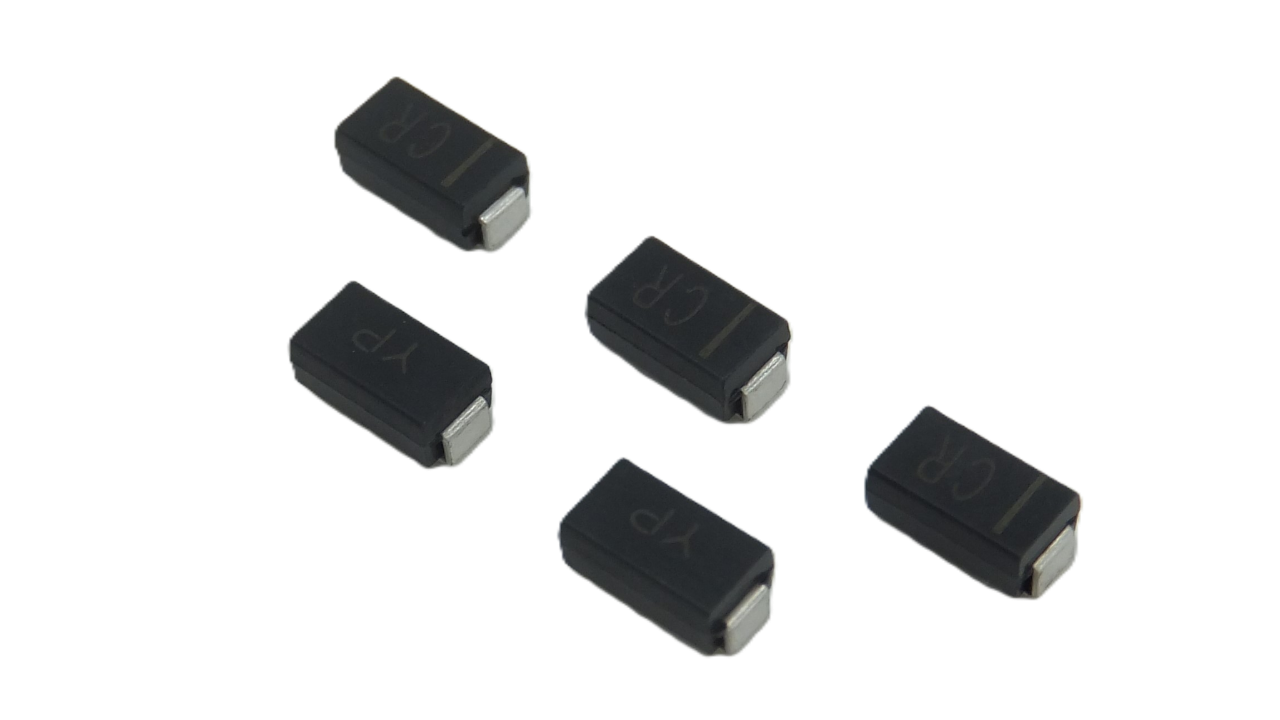

400W Power TVS Category

For typical DC protection. 400W peak pulse power. Low clamping voltage. Comply with RoHS exemption.

400W Power TVS Product Table

Part Number	VRWM	VB_min	VB_max	IR	IPP	VC	Package	Download
SMAJ5.0A	5.0V	6.4V	7.0V	800uA	43.4A	9.2V	SMA	Download
SMAJ12A	12.0V	13.3V	14.7V	5uA	20.1A	19.9V	SMA	Download
SMAJ15A	15.0V	16.7V	18.5V	5uA	16.3A	24.4V	SMA	Download
SMAJ20A	20.0V	22.2V	24.5V	5uA	12.3A	32.4V	SMA	Download
SMAJ24A	24.0V	26.7V	29.5V	5uA	10.2A	38.9V	SMA	Download
SMAJ30A	30.0V	33.3V	36.8V	5uA	8.2A	48.4V	SMA	Download
SMAJ33A	33.0V	36.7V	40.6V	5uA	7.5A	53.3V	SMA	Download
SMAJ36A	36.0V	40.0V	44.2V	5uA	6.8A	58.1V	SMA	Download
SMAJ48A	48.0V	53.3V	58.9V	5uA	5.1A	77.4V	SMA	Download
SMAJ58A	58.0V	64.4V	71.2V	5uA	4.2A	93.6V	SMA	Download
SMAJ60A	60.0V	66.7V	73.7V	5uA	4.1A	96.8V	SMA	Download
SMAJ100A	100.0V	111.0V	123.0V	5uA	2.4A	162.0V	SMA	Download
SMAJ200A	200.0V	224.0V	247.0V	5uA	1.2A	324.0V	SMA	Download
SMAJ5.0CA	5.0V	6.4V	7.0V	800uA	43.4A	9.2V	SMA	Download
SMAJ12CA	12.0V	13.3V	14.7V	5uA	20.1A	19.9V	SMA	Download
SMAJ15CA	15.0V	16.7V	18.5V	5uA	16.3A	24.4V	SMA	Download
SMAJ20CA	20.0V	22.2V	24.5V	5uA	12.3A	32.4V	SMA	Download
SMAJ24CA	24.0V	26.7V	29.5V	5uA	10.2A	38.9V	SMA	Download
SMAJ30CA	30.0V	33.3V	36.8V	5uA	8.2A	48.4V	SMA	Download
SMAJ33CA	33.0V	36.7V	40.6V	5uA	7.5A	53.3V	SMA	Download
SMAJ36CA	36.0V	40.0V	44.2V	5uA	6.8A	58.1V	SMA	Download
SMAJ48CA	48.0V	53.3V	58.9V	5uA	5.1A	77.4V	SMA	Download
SMAJ58CA	58.0V	64.4V	71.2V	5uA	4.2A	93.6V	SMA	Download
SMAJ60CA	60.0V	66.7V	73.7V	5uA	4.1A	96.8V	SMA	Download
SMAJ100CA	100.0V	111.0V	123.0V	5uA	2.4A	162.0V	SMA	Download
SMAJ200CA	200.0V	224.0V	247.0V	5uA	1.2A	324.0V	SMA	Download
