Product List

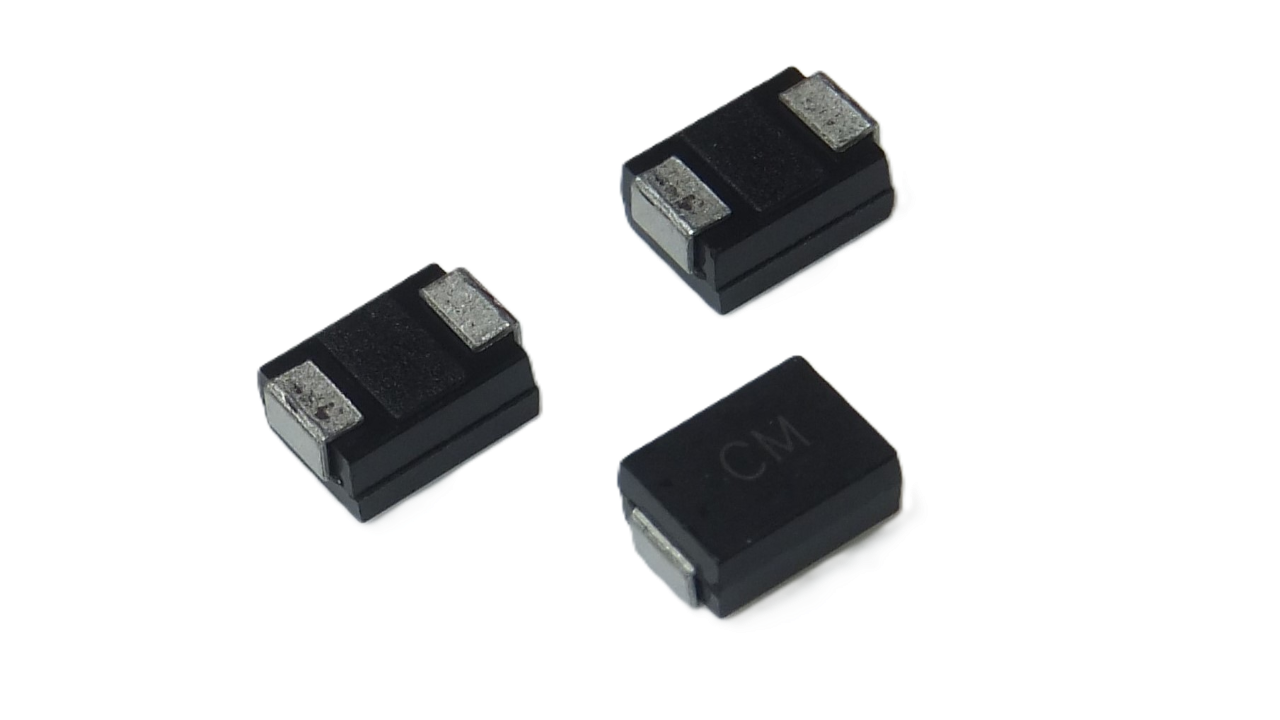

600W Power TVS Category

For typical DC protection. 600W peak pulse power. Low clamping voltage. Comply with RoHS exemption.

600W Power TVS Product Table

Part Number	VRWM	VB_min	VB_max	IR	IPP	VC	Package	Download
SMBJ5.0A	5.0V	6.4V	7.0V	800uA	65.3A	9.2V	SMB	Download
SMBJ12A	12.0V	13.3V	14.7V	5uA	30.2A	19.9V	SMB	Download
SMBJ15A	15.0V	16.7V	18.5V	5uA	24.6A	24.4V	SMB	Download
SMBJ20A	20.0V	22.2V	24.5V	5uA	18.6A	32.4V	SMB	Download
SMBJ24A	24.0V	26.7V	29.5V	5uA	15.5A	38.9V	SMB	Download
SMBJ30A	30.0V	33.3V	36.8V	5uA	12.4A	48.4V	SMB	Download
SMBJ33A	33.0V	36.7V	40.6V	5uA	11.3A	53.3V	SMB	Download
SMBJ36A	36.0V	40.0V	44.2V	5uA	10.4A	58.1V	SMB	Download
SMBJ48A	48.0V	53.3V	58.9V	5uA	7.8A	77.4V	SMB	Download
SMBJ58A	58.0V	64.4V	71.2V	5uA	6.5A	93.6V	SMB	Download
SMBJ60A	60.0V	66.7V	73.7V	5uA	6.2A	96.8V	SMB	Download
SMBJ100A	100.0V	111.0V	123.0V	5uA	3.7A	162.0V	SMB	Download
SMBJ200A	200.0V	224.0V	247.0V	5uA	1.9A	324.0V	SMB	Download
SMBJ5.0CA	5.0V	6.4V	7.0V	800uA	65.3A	9.2V	SMB	Download
SMBJ12CA	12.0V	13.3V	14.7V	5uA	30.2A	19.9V	SMB	Download
SMBJ15CA	15.0V	16.7V	18.5V	5uA	24.6A	24.4V	SMB	Download
SMBJ20CA	20.0V	22.2V	24.5V	5uA	18.6A	32.4V	SMB	Download
SMBJ24CA	24.0V	26.7V	29.5V	5uA	15.5A	38.9V	SMB	Download
SMBJ30CA	30.0V	33.3V	36.8V	5uA	12.4A	48.4V	SMB	Download
SMBJ33CA	33.0V	36.7V	40.6V	5uA	11.3A	53.3V	SMB	Download
SMBJ36CA	36.0V	40.0V	44.2V	5uA	10.4A	58.1V	SMB	Download
SMBJ48CA	48.0V	53.3V	58.9V	5uA	7.8A	77.4V	SMB	Download
SMBJ58CA	58.0V	64.4V	71.2V	5uA	6.5A	93.6V	SMB	Download
SMBJ60CA	60.0V	66.7V	73.7V	5uA	6.2A	96.8V	SMB	Download
SMBJ100CA	100.0V	111.0V	123.0V	5uA	3.7A	162.0V	SMB	Download
SMBJ200CA	200.0V	224.0V	247.0V	5uA	1.9A	324.0V	SMB	Download

Next Step

Use the contact page for sales and distributor information, or review available documents before reaching out.
