Product List

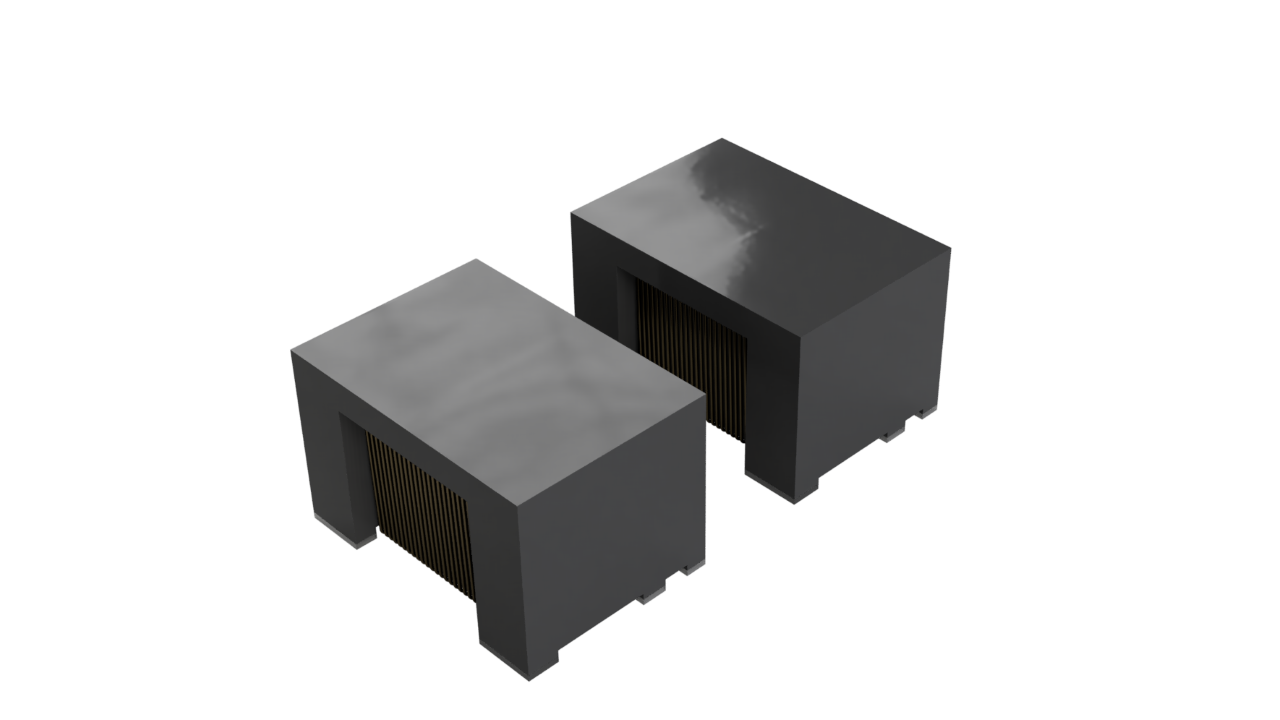

Inductor Type XFM Category
Inductor Type XFM Product Table
| Part Number | VDC | IDC | Inductance | Insertion Loss | Data Rate | Package | Download |
|---|---|---|---|---|---|---|---|
| NLPT4532-G00 | -V | -mA | 120uH | -1.5dB | 10/100/1GMbps | 4532 | Download |
| NLPT4532-G30 | 60V | 700mA | 120uH | -1.5dB | 10/100/1GMbps | 4532 | Download |
| NLPT4532-H00 | -V | -mA | 120uH | -1.5dB | 10/100/1G/2.5GMbps | 4532 | Download |
| NLPT4532-H30 | 60V | 700mA | 120uH | -1.5dB | 10/100/1G/2.5GMbps | 4532 | Download |
| NLPT4532-U00 | -V | -mA | 120uH | -1.5dB | 10/100/1G/2.5G/10GMbps | 4532 | Download |
| NLPT4532-U30 | 60V | 700mA | 120uH | -1.5dB | 10/100/1G/2.5G/10GMbps | 4532 | Download |
