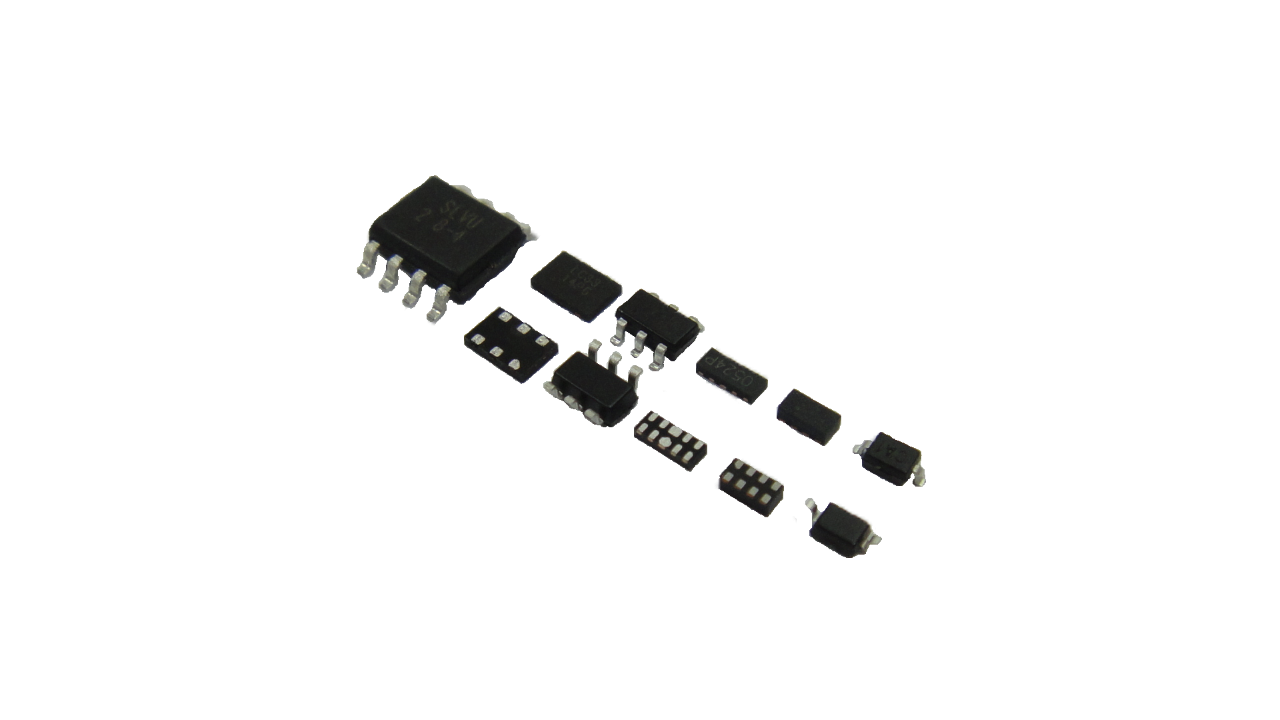

TVS Diode Array Category

For typical ESD or seconary side surge protection. Various package including DFN-0603(0201). Junction capacitance low to 0.15pF. Surge current up to 100A.

TVS Diode Array Product Table

Part Number	VRWM	VB	IR	IPP	VC	CJ	Package	Download
NLES1V8CM	1.8V	2.3V	1.0uA	10.0A	7.0V	25.0pF	DFN-0603	Download
NLES2V5CM	2.5V	3.2V	1.0uA	10.0A	8.0V	23.0pF	DFN-0603	Download
NLES3V3CM	3.3V	3.8V	1.0uA	10.0A	9.0V	23.0pF	DFN-0603	Download
NLES5V0CM	5.0V	5.5V	1.0uA	10.0A	11.0V	20.0pF	DFN-0603	Download
NLES12VCM	12.0V	13.6V	1.0uA	2.0A	24.0V	5.0pF	DFN-0603	Download
NLES24VCM	24.0V	27.0V	1.0uA	1.0A	45.0V	3.0pF	DFN-0603	Download
NLULC05CM	5.0V	6.0V	1.0uA	4.0A	13.5V	0.15pF	DFN-0603	Download
NLESDA33CP	3.3V	3.5V	1.0uA	8.0A	13.0V	10.0pF	DFN-1006	Download
NLESDA05CP	5.0V	6.0V	1.0uA	4.0A	20.0V	10.0pF	DFN-1006	Download
NLESDA12CP	12.0V	13.3V	1.0uA	2.0A	23.0V	4.5pF	DFN-1006	Download
NLSDA03CDN	3.3V	3.5V	1.0uA	15.0A	12.0V	20.0pF	DFN-1006	Download
NLSDA05CDN	5.0V	6.0V	1.0uA	14.0A	18.0V	60.0pF	DFN-1006	Download
NLSDA12CDN	12.0V	13.3V	1.0uA	7.0A	30.0V	27.0pF	DFN-1006	Download
NLSDA15CDN	15.0V	16.7V	1.0uA	6.0A	37.0V	25.0pF	DFN-1006	Download
NLSDA18CDN	18.0V	19.5V	1.0uA	4.0A	47.0V	45.0pF	DFN-1006	Download
NLSDA24CDN	24.0V	26.7V	1.0uA	3.0A	55.0V	24.0pF	DFN-1006	Download
NLSDA36CDN	36.0V	40.0V	1.0uA	2.0A	75.0V	20.0pF	DFN-1006	Download
NLULC05CDN	5.0V	6.0V	1.0uA	1.0A	15.0V	0.35pF	DFN-1006	Download
NLSDA03DN	3.0V	3.5V	40.0uA	15.0A	14.0V	200.0pF	DFN-1006	Download
NLSDA05DN	5.0V	6.0V	5.0uA	13.0A	16.0V	110.0pF	DFN-1006	Download
NLSDA12DN	12.0V	13.3V	1.0uA	6.0A	30.0V	60.0pF	DFN-1006	Download
NLSDA15DN	15.0V	16.7V	1.0uA	5.0A	35.0V	50.0pF	DFN-1006	Download
NLSDA24DN	24.0V	26.6V	1.0uA	3.0A	50.0V	27.0pF	DFN-1006	Download
NLSDA36DN	36.0V	40.0V	1.0uA	2.0A	75.0V	25.0pF	DFN-1006	Download
NLLC33UDN	3.3V	4.5V	1.0uA	9.0A	11.0V	1.0pF	DFN-1006	Download
NLULC05UDN	5.0V	6.0V	1.0uA	1.0A	15.0V	0.5pF	DFN-1006	Download
NLULC03CTN	3.3V	4.0V	1.0uA	15.0A	18.0V	0.6pF	DFN-1610	Download
NLULC05CTN	5.0V	6.0V	1.0uA	11.0A	20.0V	0.6pF	DFN-1610	Download
NLULC12CTN	12.0V	13.3V	1.0uA	5.0A	30.0V	0.6pF	DFN-1610	Download
NLULC15CTN	15.0V	16.7V	1.0uA	4.0A	35.0V	0.6pF	DFN-1610	Download
NLULC24CTN	24.0V	26.7V	1.0uA	2.0A	50.0V	0.6pF	DFN-1610	Download
NLULC03TN	3.3V	4.0V	1.0uA	15.0A	18.0V	0.6pF	DFN-1610	Download
NLULC05TN	5.0V	6.0V	1.0uA	11.0A	20.0V	0.6pF	DFN-1610	Download
NLULC12TN	12.0V	13.3V	1.0uA	5.0A	30.0V	0.6pF	DFN-1610	Download
NLULC15TN	15.0V	16.7V	1.0uA	4.0A	35.0V	0.6pF	DFN-1610	Download
NLULC24TN	24.0V	26.7V	1.0uA	2.0A	50.0V	0.6pF	DFN-1610	Download
NLSD03TN	3.3V	4.0V	40.0uA	100.0A	19.8V	1200.0pF	DFN-1610	Download
NLSD05TN	5.0V	6.0V	10.0uA	90.0A	20.0V	930.0pF	DFN-1610	Download
NLSD12TN	12.0V	13.3V	1.0uA	57.0A	28.5V	370.0pF	DFN-1610	Download
NLSD15TN	15.0V	16.5V	1.0uA	45.0A	34.0V	290.0pF	DFN-1610	Download
NLSD24TN	24.0V	26.2V	1.0uA	28.0A	45.0V	200.0pF	DFN-1610	Download
NLSD36TN	36.0V	40.0V	1.0uA	17.7A	70.5V	150.0pF	DFN-1610	Download
NLSD48TN	48.0V	49.5V	1.0uA	13.8A	79.6V	130.0pF	DFN-1610	Download
NLC33SP8	3.3V	4.0V	0.05uA	17.0A	15.0V	1.3pF	DFN-2010P8	Download
NLULC0514C	5.0V	6.0V	1.0uA	3.0A	30.0V	0.3pF	DFN-2510P10	Download
NLULC3324P	3.3V	4.0V	1.0uA	5.0A	8.8V	0.5pF	DFN-2510P10	Download
NLULC3324S	3.3V	3.6V	1.0uA	20.0A	15.0V	1.0pF	DFN-2510P10	Download
NLSH3314N	3.3V	4.0V	1.0uA	30.0A	17.0V	5.0pF	DFN-3020P6	Download
NLSH0514N	5.0V	6.0V	1.0uA	30.0A	20.0V	5.0pF	DFN-3020P6	Download
NLSH2508N10	2.5V	3.5V	0.1uA	40.0A	25.0V	3.8pF	DFN-3020P10	Download
NLESDA03CT	3.3V	3.5V	1.0uA	7.0A	12.0V	10.0pF	SOD-523	Download
NLESDA05CT	5.0V	6.0V	1.0uA	4.0A	20.0V	10.0pF	SOD-523	Download
NLESDA08CT	8.0V	8.5V	1.0uA	3.0A	25.0V	7.0pF	SOD-523	Download
NLULC05CT	5.0V	6.0V	1.0uA	4.0A	13.0V	0.2pF	SOD-523	Download
NLSDA33T1	3.3V	4.0V	200.0uA	11.2A	14.1V	200.0pF	SOD-523	Download
NLSDA05T1	5.0V	6.0V	5.0uA	9.4A	18.6V	110.0pF	SOD-523	Download
NLSDA08T1	8.0V	8.5V	5.0uA	7.0A	19.5V	70.0pF	SOD-523	Download
NLSDA12T1	12.0V	13.3V	1.0uA	5.0A	20.5V	60.0pF	SOD-523	Download
NLSDA15T1	15.0V	16.6V	1.0uA	5.0A	22.0V	50.0pF	SOD-523	Download
NLSDA24T1	24.0V	26.7V	1.0uA	3.0A	32.0V	25.0pF	SOD-523	Download
NLSDA36T1	36.0V	40.0V	1.0uA	2.0A	75.0V	25.0pF	SOD-523	Download
NLULC0501T	5.0V	6.0V	1.0uA	3.0A	23.0V	0.7pF	SOD-523	Download
NLC3311CCW	3.0V	3.5V	0.5uA	10.0A	15.0V	1.0pF	SOD-323	Download
NLC3311DCW	3.0V	4.0V	5.0uA	20.0A	17.0V	2.0pF	SOD-323	Download
NLC1211DCW	12.0V	13.3V	1.0uA	14.0A	30.0V	2.0pF	SOD-323	Download
NLC03CI	3.0V	4.0V	40.0uA	15.0A	21.0V	1.0pF	SOD-323	Download
NLC05CI	5.0V	6.0V	5.0uA	14.0A	24.0V	1.0pF	SOD-323	Download
NLC08CI	8.0V	8.5V	1.0uA	12.0A	26.0V	1.0pF	SOD-323	Download
NLC12CI	12.0V	13.3V	1.0uA	7.0A	30.0V	1.0pF	SOD-323	Download
NLC15CI	15.0V	16.7V	1.0uA	6.0A	34.0V	1.0pF	SOD-323	Download
NLC24CI	24.0V	26.7V	1.0uA	3.0A	55.0V	1.0pF	SOD-323	Download
NLSD03C	3.0V	4.0V	300.0uA	20.0A	12.0V	400.0pF	SOD-323	Download
NLSD05C	5.0V	6.0V	10.0uA	17.0A	18.0V	200.0pF	SOD-323	Download
NLSD08C	8.0V	8.4V	5.0uA	12.0A	24.0V	100.0pF	SOD-323	Download
NLSD12C	12.0V	13.3V	1.0uA	11.0A	32.0V	75.0pF	SOD-323	Download
NLSD15C	15.0V	16.7V	1.0uA	10.0A	38.0V	68.0pF	SOD-323	Download
NLSD18C	18.0V	19.5V	1.0uA	9.0A	45.0V	57.0pF	SOD-323	Download
NLSD24C	24.0V	26.7V	1.0uA	7.0A	52.0V	50.0pF	SOD-323	Download
NLSD36C	36.0V	40.0V	1.0uA	4.0A	75.0V	40.0pF	SOD-323	Download
NLSD25HW	2.5V	3.0V	30.0uA	68.0A	17.0V	900.0pF	SOD-323	Download
NLSD05HW	5.0V	6.0V	5.0uA	60.0A	18.8V	530.0pF	SOD-323	Download
NLSE05-4	5.0V	6.0V	1.0uA	5.5A	17.0V	1.0pF	SOT23-6	Download
NLSH05-4	5.0V	6.0V	5.0uA	20.0A	20.0V	5.0pF	SOT23-6	Download
NLSQV05LC	5.0V	6.0V	1.0uA	4.0A	8.0V	0.5pF	SOT23-6	Download
NLSH2.8-4	2.8V	3.0V	0.1uA	30.0A	21.0V	2.0pF	SO-8	Download
NLSH2.8-8	2.8V	3.0V	1.0uA	30.0A	21.0V	7.0pF	SO-8	Download
